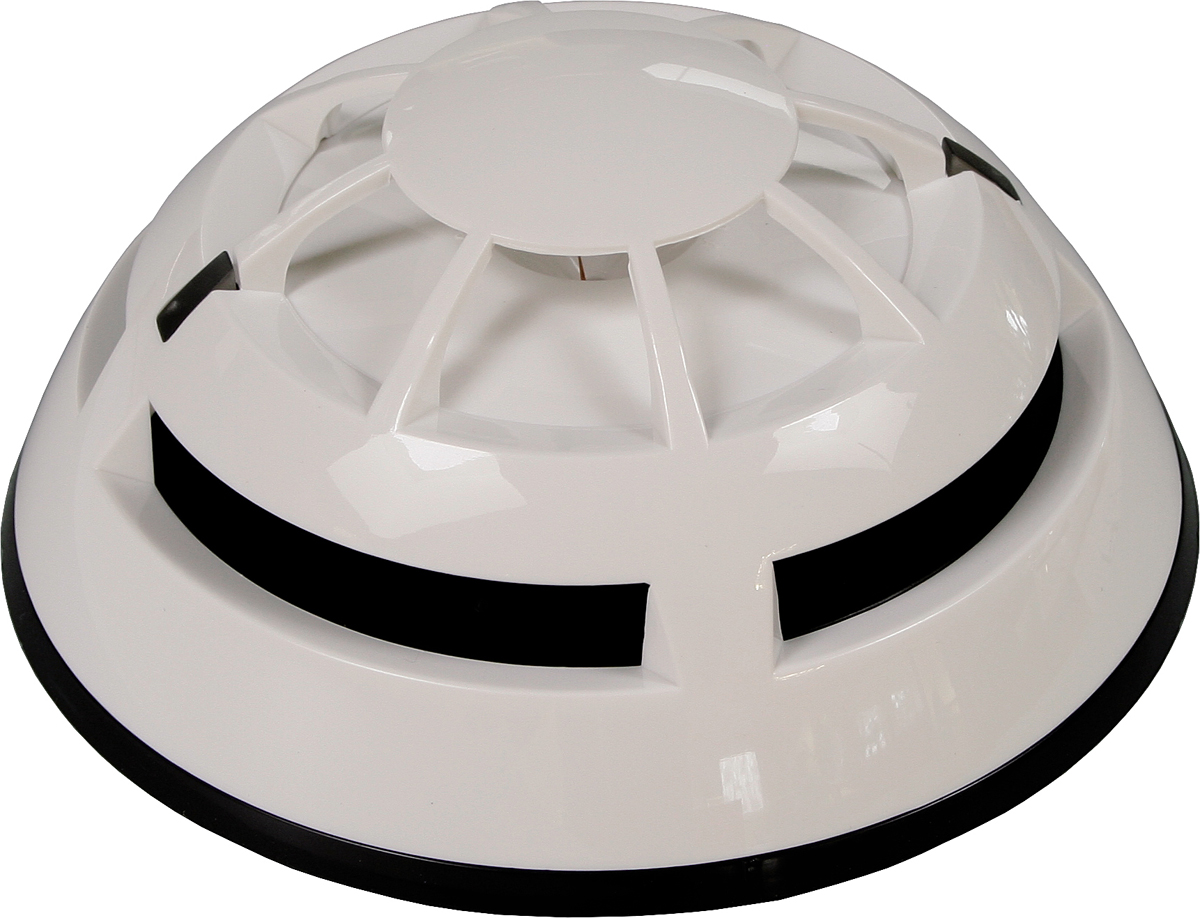

FI750 series thermal detector, class A1R or BS |
|
Order code: | FI750/T |
Guaranty time(months): | 24 |
Manufacturer: | LST |
Store: |
Stock
|
 |
Description:The detector is based on the principle of heat detection (can be parameterised as rate-of-rise detector with a maximum temperature of 58°C (Class A1R) or as maximum heat detector with an alarm temperature of 78°C (Class BS)) and is designed for use on ADM loops with Labor Strauss/700 protocol. In the parameter settings of the control panel, one of 4 sensitivity levels can be selected, thereby adapting the detector optimally to the respective application. The two multicoloured LED indicators with 360° visibility indicate the activated condition of the detector in red and the test condition in green. An output for the connection of a remote indicator is available. The integrated dual-isolator disconnects the loop at short circuit on the loop line. By means of the Programming Unit FI750/PU, the address of the detector can be set in the range 1 to 240. The detector is accommodated in a white housing and is designed for indoor mounting.
|
|
Technical parameters
Accessories
Alternative products
Successor
FAQ
Product query
All illustrations and photos are illustrative. All shown prices are in EUR, excl. VAT.
|
