Order code: | BC600-1D |
Guaranty time(months): | 12 |
Manufacturer: | LST |
 |

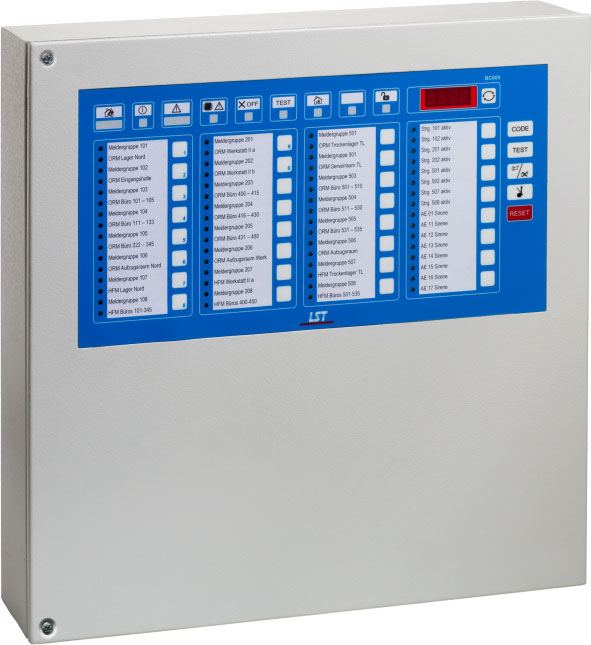

Description:This compact panel is a completely integrated unit for the connection of one loop. On the Central Processing Board ZTB601-1 the power unit with an output current of 2.3A as well as the loop interface with selectable loop procol have already been integrated. In addition, the unit offers the following specific features: The LED button field that is integrated into the front of the housing comprises 32 freely parameterisable keys for the direct operation of the zones, actuations or further system parts. For the indication of events, 2 light emitting diodes are located next to each key. Thanks to the optional preset of the keys and LEDs, the handling of the control panel is especially easy. The control panel offers a mounting position for an optional expansion module (Fire Brigade Interface FWI600-1, Conventional Detector Interface GIF608-1 or Serial Interface SIF601-x). In order to use it, the Backplane BPL601-1 must be installed in addition. 1 monitored output with an output current of 500mA allows the connection of an alarming device. 2 auxiliary inputs and 8 open-collector outputs are available for general control tasks. At the bottom of the housing, there is space for stand-by batteries with 2 × 12V/max. 22Ah.
